Clean booth is a kind of air purifying equipment providing partial
high clean environment, it’s the easiest and fastest way to build
a simple clean room. Equipped with a lot of clean level and space
collocation, it can be designed as request.
Main characteristics: simple use, good flexibility, easy installation,
short construction time, and movable.
It can be installed in part of clean room of general level which
requires high cleanliness to save cost.

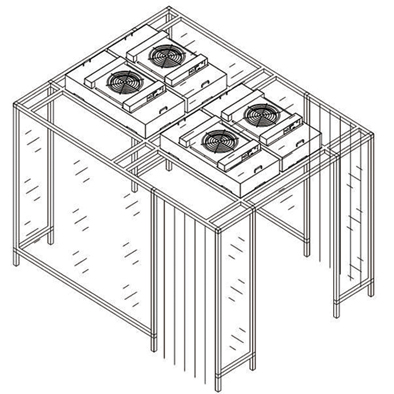

Clean booth is a kind of rapidly-established simple clean room with a variety of cleanliness level and space collocation. It can be designed according to the user's demand, is also a kind of movable sample purification device with small investment and high purification. Place the fan cabinet on an aluminum profile holder, and seal it tightly, the surrounding of which is covered with anti-static curtain / anti-static plexiglass, and the bottom of the surrounding adopts positive pressure natural exhaust and other forms, making the cleanliness in the clean booth reach 100-300000 level. At present, it is widely used in clean and sterile operating environment of electronics, biotechnology, medicine, food, precision instruments and other industries, to provide local high-cleanliness working environment.
l Fan cabinet unit adopts cold-rolled steel panel and the surface adopts electrostatic spraying, enhancing structural strength.
l The holder is made of aluminum alloy for easy assembly.
l Adopt new ozone-free UV lamp, strength is high, and lifespan is long;
l Adopt centrifugal fan, the noise and power consumption are low, the fan can use for a long term without maintenance;
2.4 Function and Structure Introduction
★Air filtration system
The air filtration system is the most important system to ensure the performance of this equipment, which consists of a fan, a clean air filter.
When the equipment is running, the outside air enters the filter unit, the filtration system filters the dust particles or the infection factor, and finally sends the clean, pollution-free gas to the clean booth. Filtration system adopts HEPA high efficiency filter to ensure that the filtration efficiency can reach 99.99% (diameter is 0.3μm)
Fan button controls the working state of the fan, the fan working states have timing 3 hours, 6 hours, 9 hours, off, a total of 4 states, every press can change the working state once.
|External Size (W*D*H)||5000*5000*2530mm|
|HEPA Filters||99.999% efficiency at 0.3 um|
|FFU Nos.||25 pcs|
|Clean Level||ISO 5 (Class 100), Class A|
|Control System||Microprocessor control system|
|Rectangular Tube Material||Aluminium alloy|
|Wall Material||Anti-static dustproof curtain|
|Blower||Built-in centrifugal blower; speed adjustable|
|Emission of 253.7nanometers, with UV timer|
|LED Lamp,Illumination :≥500lux|
|Air Velocity||0.1~0.6m/s, average 0.45m/s|
|Power Supply||AC220V±10%, 50/60Hz; 110V±10%, 60Hz|
|Package Size (W*D*H)||4080*980*1280mm|
|Customized design for clean level, size or material is available|
