This products belong to Class II A2 biological safety cabinet , biological safety cabinet is a kind of negative pressure filtration system for protecting operator, the laboratory environment and work materials, the front opening which air flow inward have protection function for operator, the filtered laminar flow generated by vertical HEPA can protect work materials, what’s more, the polluted air flow become pure after processed by HEPA(ULPA) filter. When it’s used in microbiology experiment environment filled with volatile or toxic chemical and radionuclide, suitable exhaust hood in function have to be linked.
Biological Safety Cabinet is necessary equipment in the laboratory in the search of microbiology, biomedical, DNA recombinant, animal experiment, and biological products, especially in the occasion that operator need to adopt protective measure, such as medical and health, pharmacy, medical research. Our equipment provides a safety working environment which don’t have bacterial and dust in the process of bacterial culture.
Biological safety cabinets (BSCs) are designed to protect the operator, the laboratory environment and work materials from exposure to infectious aerosols and splashes that may be generated when manipulating materials containing infectious agents, such as primary cultures, stocks and diagnostic specimens.
|Tested Opening||Safety Height = 200 mm(8'')|
|Inflow Velocity||0.53±0.025 m/s|
|Downflow Velocity||0.33±0.025 m/s|
|ULPA Filter||Two, 99.9995% efficient at 0.12 um. Filter life indicator.|
|Front Window||Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.|
|Noise||EN12469 ≤ 58 dB / NSF49 ≤ 61 dB|
|UV timer, UV life indicator, emission of 253.7 nanometers|
|for most efficient decontamination.|
|Illuminating Lamp||LED Lamp|
|Waterproof Sockets||Two, total load of two sockets: 500W|
|Display||LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.|
|Airflow System||70% air recirculation, 30% air exhaust|
|Visual and audio alarm||Filter replacement, front window at unsafe height, abnormal airflow velocity.|
|Material||Work Zone: 304 stainless steel|
|Main Body: Cold-rolled steel with anti-bacteria powder coating.|
|Work Surface Height||750mm|
|Power Supply||AC220V±10%, 50/60Hz; 110V±10%, 60Hz|

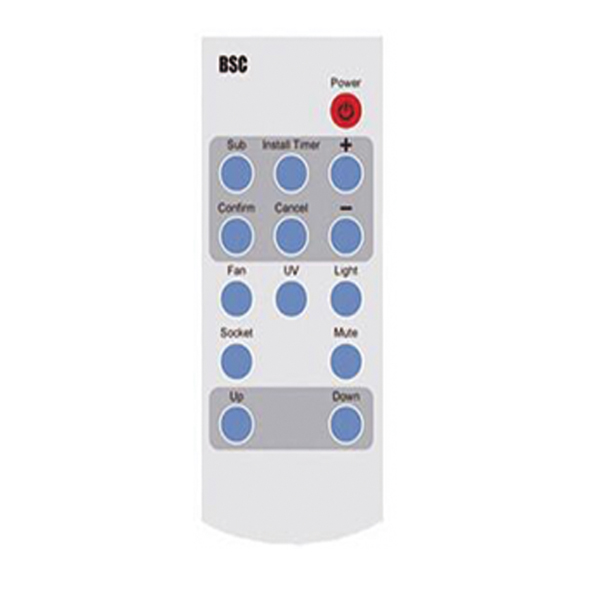

|Standard Accessory||LED lamp, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2|
|Optional Accessory||Water and gas tap, Electric height adjustable base stand.|
