QRJ-128
BIOBASE
Product Description
Applications:
Aerosol adsorber is an air purification equipment, which is widely used in hospital, small clinic, laboratory, office, meeting room and house etc. it can protect your life and your health through filtering dust, germ and virus in the air.
Features:
1. Low noise.

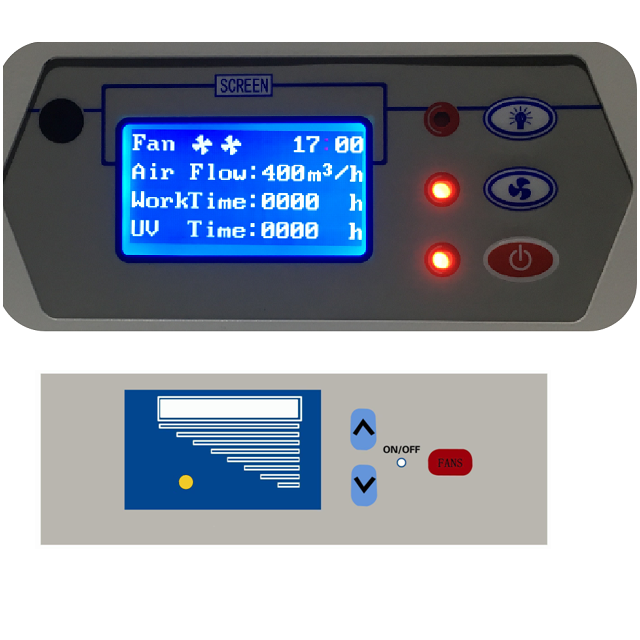

2. LCD display
3. Remote control.
4. Adjustable air velocity.
5. Thorough sterilizing with UV Lamp.
6. Mobile Type, Wall Hanging Type, Suction Ceiling Type.
Installation Notice
1、 Please disconnect the power if the equipment would not be used for a long time.
2、 Do not place any object to block the inflow and outflow of the equipment.
3、 The equipment should not be placed near any source of heat.
4、 Power supply of the equipment should be 220V/50Hz. Socket should be standard three-pin single phase socket and reliable grounding is required.
5、 An undesirable environment would reduce the life of filter seriously and accelerate the filter change frequency.
6、 The equipment should be installed in an environment which is easily to reach the power source.
Operation Notices:
1. Please inform the after-sale service department when the problem could not be solved through troubleshooting and above solutions.
2. The repair work should be done only by technical engineers trained and approved by BIOBASE.
3. Do not replace any components without permission. Please contact our service department and specify your equipment model number if you have to order certain components.
Parameters
Model | QRJ-128 |
External Size (W*D*H) | 900*120*1500 mm |
Filter | HEPA filter (Optional: lysozyme filter) |
Optimal Space | ≤15m2 |
Noise | <58dB |
Consumption | 240w |
Adjustable Air Speed | 3 levels |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Cleanness at Outlet | Class 100 |
Gross Weight | 58kg |
Package Size | 1090*455*1600mm |
Service
♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.
After-sales service:
♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.
♥12-month warranty for most of products.
Packing List
Celling Type
No. | Parts Name | Quantity |
1 | QRJ-128 Air Purifier Main Body | 1 Setting |
2 | User Manual | 1 pc |
3 | Quality Certificate | 1 pc |
4 | Test Report | 1 pc |
5 | Fuse 220V 5A | 2 pcs |
6 | Remote Control (with battery) | 1 Setting |
7 | Warranty Card | 1 pc |
8 | M10 expansile hook | 6 pcs |
9 | Steel wire rope φ3/L=1200mm | 6 pcs |
10 | Steel wire clip φ3 | 12 pcs |
11 | M10 lifting bolt | 6 pcs |
12 | Power cord | 1 pc |
13 | Turnbuckle M8 | 6 pcs |
Stand Type
No. | Parts Name | Quantity |
1 | QRJ-128 Air Purifier Main Body | 1 Setting |
2 | User Manual | 1 pc |
3 | Quality Certificate | 1 pc |
4 | Test Report | 1 pc |
5 | Fuse 220V 5A | 2 pc |
6 | Remote Control (with battery) | 1 Setting |
7 | Warranty Card | 1 pc |
8 | Casters components | 2 pc |
9 | inner hexagonal head bolt M10*25 (with spring and flat washer) | 4 Settings |
10 | Power cord | 1 pc |
