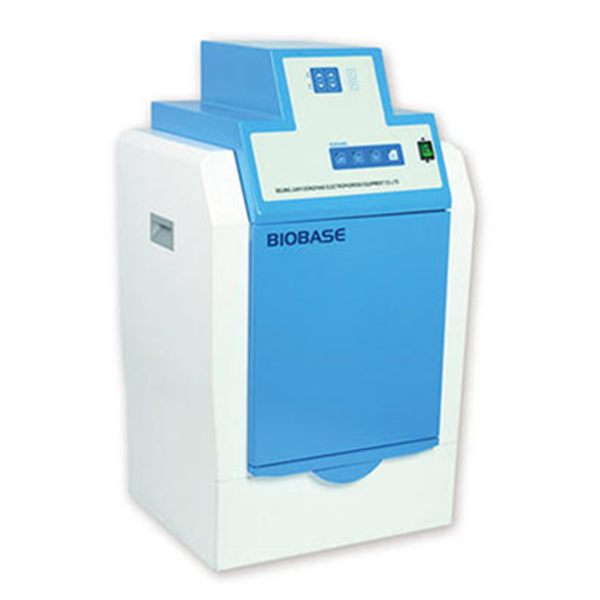

Laboratory Clinical Documentation Gel Document Imaging System BK04S-3C

5 0 Reviews

Gel Document Imaging System is used for gel band observation and analysis after electrophoresis run by using software technology and the band picture can be zoomed in or zoomed out according to user's requirements.

Price: $ 3048 / unit
Model:
Quantity:
  • BK04S-3C
  • BIOBASE


Gel Document Imaging System


    Gel Document Imaging System is used for gel band observation and analysis after electrophoresis run by using software technology and the band picture can be zoomed in or zoomed out according to user's requirements.


Features:

* CCD with lower lux and high-resolution
* Six time zoom lens and simple to enlarge and shrink gel photos
* A multi-layer gel-filter effectively filters background noise
* The gel can be placed in the center position by the indicator.
* Intelligent control box:
a. The zoon, focus, aperture, UV light and white light can be controlled through panel key and computer.
b. The UV light can shut down when the door is opened and reactivate when the door is shut
c. The UV light protection system can shut down the lights with 15 minute delay automatically.
d. Drawer-style gel platform.

Hed17c2da52574058b6ece2c1fea092b9s

Model
BK04S-3C
Effective Pixels
1280*1024
Pixel Density
10 bit
Pixel Size
5.4*5.4μm
Resolution
1.4 megapixels
Signal To Noise Ratio
56db
Sensitivity
Can detect the double chain DNA of EB staining below 20pg
Camera
Low illumination and high resolution digital CCD
Zoom Lens
F=1:1.2,2/3 inch 6 times zoom lens
Filter
590nm
UV Light Transmission Area(W*L)
250*200mm
Visible Light Transmittance Area(W*L)
250*210mm
Transmission UV Wavelength
302nm
Reflectance UV Wavelength
254, 365nm
Transmission UV Lamp Power
8W
Reflectance UV lamp Power
11W
External Size(L*W*H)
470*405*820mm
Package Size(L*W*H)
Main machine:710*760*1390mm,Accessory:420*320*330mm
Gross Weight
Main machine:61kg,Accessory:2.5kg
