Vertical Type Ultra Low Temperature Freezer -86 Degree

5 0 Reviews
Price: $ 3918 / unit
Model:
Availability:
Quantity:

Product Description

Features of ultra low temperature freezer:

  1. Microcomputer digital thermostat, operating temperature range -40℃~-86℃.

  2. Multiple protection features(Boot delay protection, compressor high temperature protection)

  3. Internationally renowned brand compressors, stronger cooling capacity.

  4. Multi-layer adjustable independent storage space for easy access.

  5. Multiple door seals, interior and exterior insulation door design.


Handling considerations of ultra low temperature freezer:

  1. Use a forklift, and do not use a cart.

  2. When using forklift, insert it from the bottom of the freezer and move it.

  3. After removing the package, the freezer must be handled and it can be pushed by the caster.

  4. Note: The angle of inclination of the freezer must not be greater than 45° during handling.


Overview:

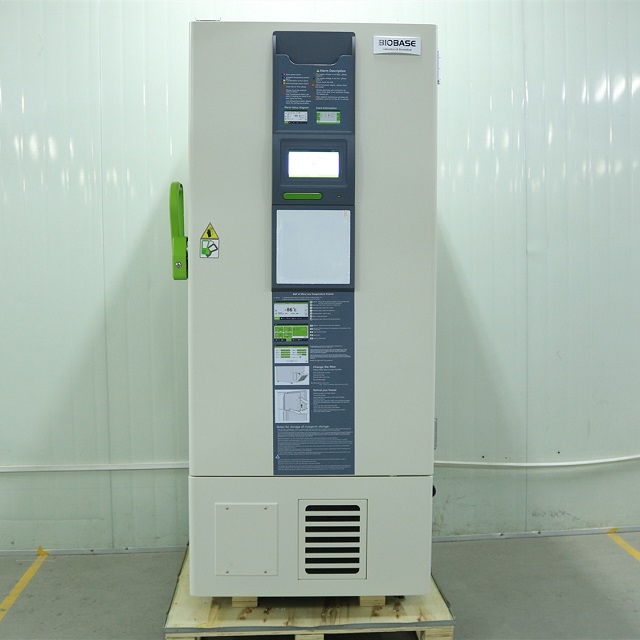

BDF-86V338


Door Handle

IMG_3237


Door seal

door seal


Hinge

Hinge


Inner chamber

inner chamber


LCD touch screen

LCD touch screen

Technical Parameters


Model
BDF-86V338
External Size(W*D*H)mm
854*1072*1907
Internal Size(W*D*H)mm
488*607*1140
Capacity
338L
Type
Vertical
Temp.Range
-40~ -86℃
Temp. Accuracy
0.1 ℃
Control System
Microprocessor control, LED Display
Audible and
Visual Alarm
High and low temperature, Sensor failure, Door ajar, Power failure, Voltage abnormal, Ambient temperature abnormal, Low voltage,
Filter blocking
Refrigeration type
Direct refrigeration
Refrigerant
Mixture refrigerant
Compressor
2 sets
Condenser&Evaporator
Made of copper
Construction
Structure
Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material)

Internal
Material
SS304

External Material
Cold-rolled steel with anti-bacteria powder coating
Door
lockable door
Caster
4 casters
Chamber withInnerDoor
4
Shelf
3 pcs
Temp. Test Port
1, φ25mm
Consumption
870w
Power Supply
AC220V±10%, 50/60Hz
Standard Accessory
72 hours battery backup for power failure alarm
Optional storage Racks and Boxes
12 racks 4*4
192 Boxes
Package size (W*D*H)mm
935*1070*2128
Gross Weight
306kg


Service

Free:

♥Free offer trial video for your sample
♥Free training video with machine



Pre-sales service:

♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.



After-sales service:

♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.

♥12-month warranty for most of products

♥Your technicians can be trained by our company.
