4ft ETL Certified Horizontal Laminar Flow Cabinet

5 0 Reviews
Laminar Flow Cabinet –sample protection only
Price: $ 1800 / unit
  • BBS-H1100

Product Description

Laminar Flow Cabinet –sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.


* ETL certification, Satisfy North American market.

* With memory function in case of power-failure.

* Audio and visual alarm (Abnormal airflow velocity).

* Interlock function: UV Lamp and blower, LED Lamp(Only with Optional UV Lamp).

ETL horizontal laminar flow cabinet

Technical Parameter

External Size(W*D*H)1100*810*(1720~1980)mm
Internal Size(W*D*H)1000*500*600mm
Work Surface Height750~1010mm
DisplayLCD Display
Airflow Velocity80~99fpm
MaterialMain Body: 1.2mm Cold-rolled steel with anti-bacteria powder coating
Work Table:304 stainless steel
Front Window: 5mm toughened glass, anti-UV
Pre-filterPolyester fiber, washable
HEPA FilterOne, 99.995% efficiency at 0.3um
LED Lamp14W*1
Waterproof socketOne socket(double type), America standard, total load≤500W
CasterUniversal caster with leveling feet
Power SupplyAC220V±10%, 50/60Hz;  110V±10%, 60Hz
Standard AccessoryLED lamp, Manually height adjustable base stand, Waterproof socket,

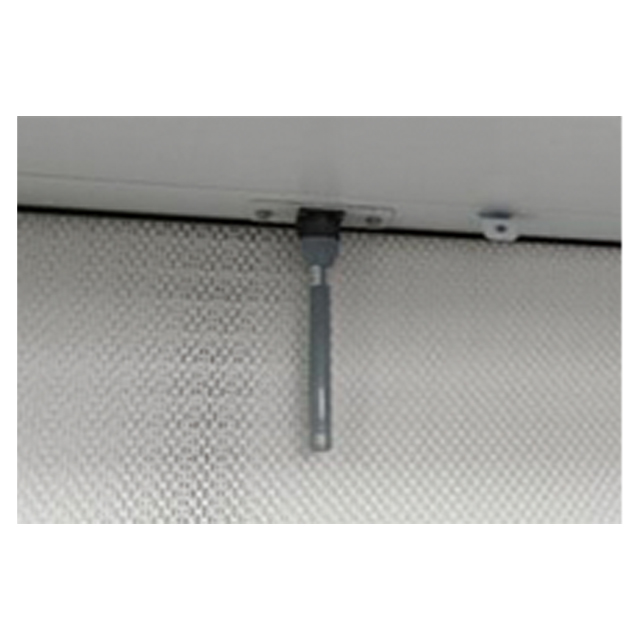

Wind spped sensor
Optional AccessoryStainless steel I.V bar with 10 hooks, UV lamp
Gross Weight190kg
Package Size(W*D*H)1240*1090*1250mm
 Warranty Three years
Lead TimeAvailable on stock



♥Free offer trial video for your sample
♥Free training video with machine


Pre-sales service:

♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.


After-sales service:

♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.

♥12-month warranty for most of products

♥Your technicians can be trained by our company.
