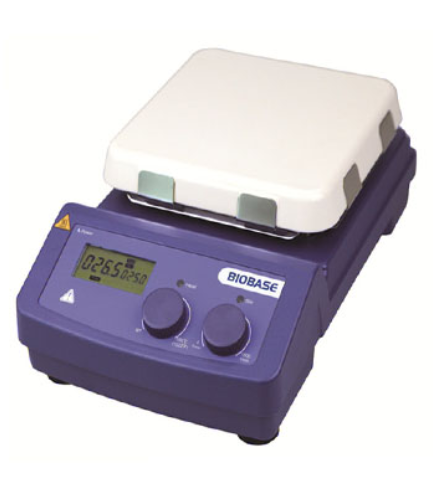

Hotplate Magnetic Stirrer
Model | MS-H-Prot |
Work Plate Size | Ф135mm(5 inch) |
WorkPlateMaterial | Stainless steel with ceramic coated |
Max. Stirring Capacity | 20L |
MotorType | Brushless DC motor |
MotorInput | 18W |
MotorOutput | 10W |
SpeedRange | 100~1500rpm |
SpeedDisplay | LCD |
SpeedDisplay Accuracy | ±1rpm |
HeatingOutput | 500W |
HeatingTemp. Range | RT-340℃, increment1℃ |
ControlTemp.Accuracy | ±1℃(<100℃),±1%(>100℃) |
OverheatingProtection | 420℃ |
Temp. Display | LCD |
Display Temp. Accuracy | ±0.1℃ |
Timing Range | 1~99h59min |
ExternalTemp. Sensor | OptionalPT1000 |
Max.Stirrer Bar Length | 80mm |
Interface | RS232 |
ProtectionType | IP42 |
Working Environment | 5-40℃,80%RH |
Power Consumption | 550W |
Power Supply | AC110/220V±10%, 50/60Hz |
External Size(W*D*H) | 160*280*85mm |
Package Size(W*D*H) | 210*345*160mm |
GrossWeight | 3.5kg |
