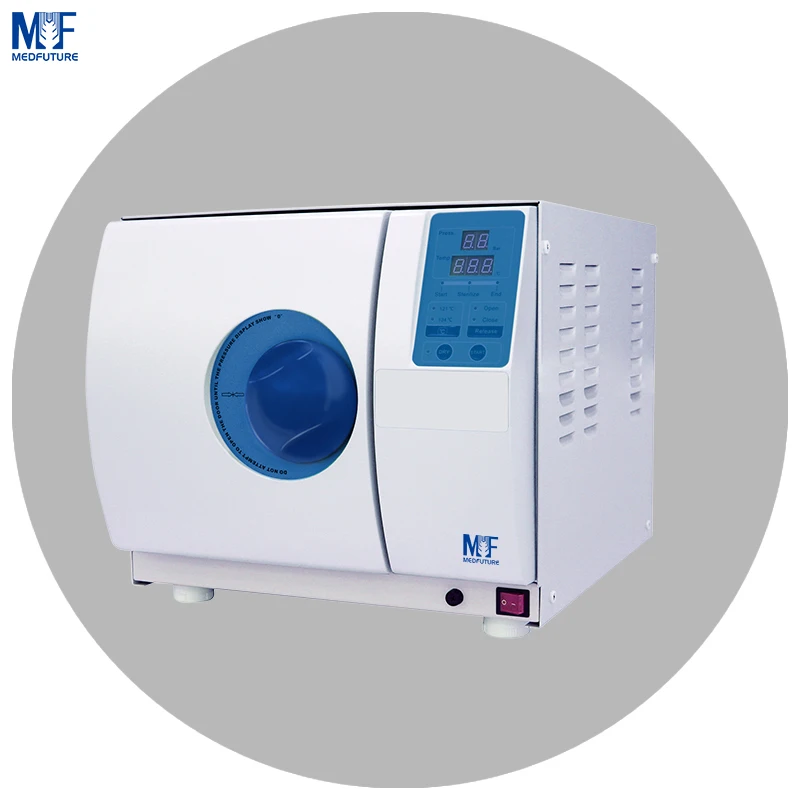

MFS-Z18N
m
Product Description
| Model | MFS-Z12N | MFS-Z18N | MFS-Z24N | ||
| Capacity | 12L | 18L | 24L | ||
| Chamber Size(mm) | φ200*360 | φ245*350 | φ245*450 | ||
| Sterilization Class | Class N (according to EN 13060 standard) | ||||
| Sterilization Temp. | 121℃,134℃ | ||||
| Drying Procedure | Heating dry | ||||

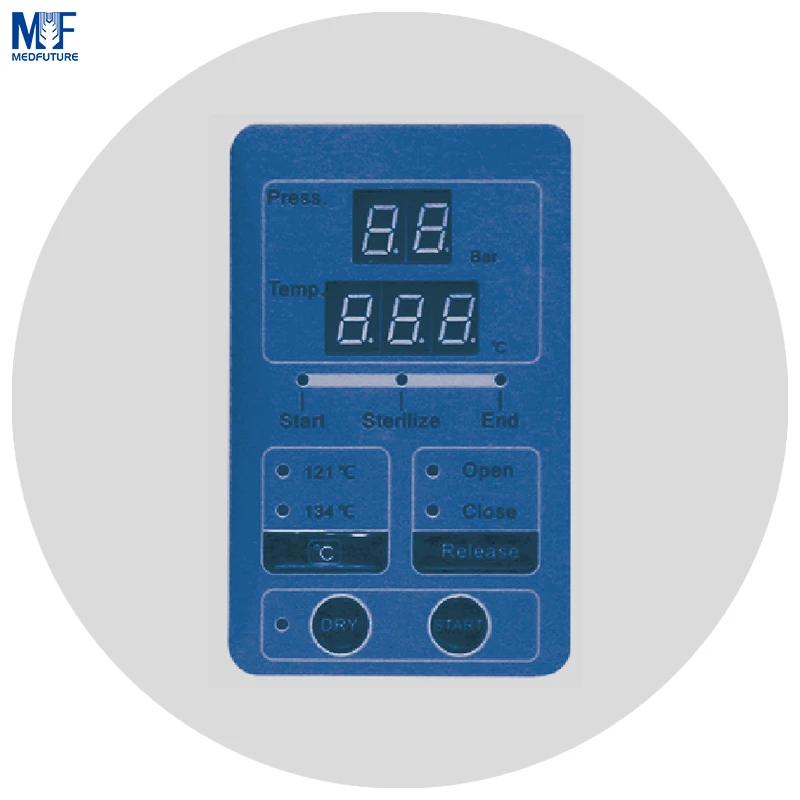

| Display | LED display | ||||
| Control Precision | Temperature: 1℃ | ||||
| Pressure: 0.1bar | |||||
| Safety System | Hand lock door | ||||
| Relief valve in case of over pressure | |||||
| Pressure or temperature over load protection | |||||
| Alarm for system failure, finish reminding | |||||

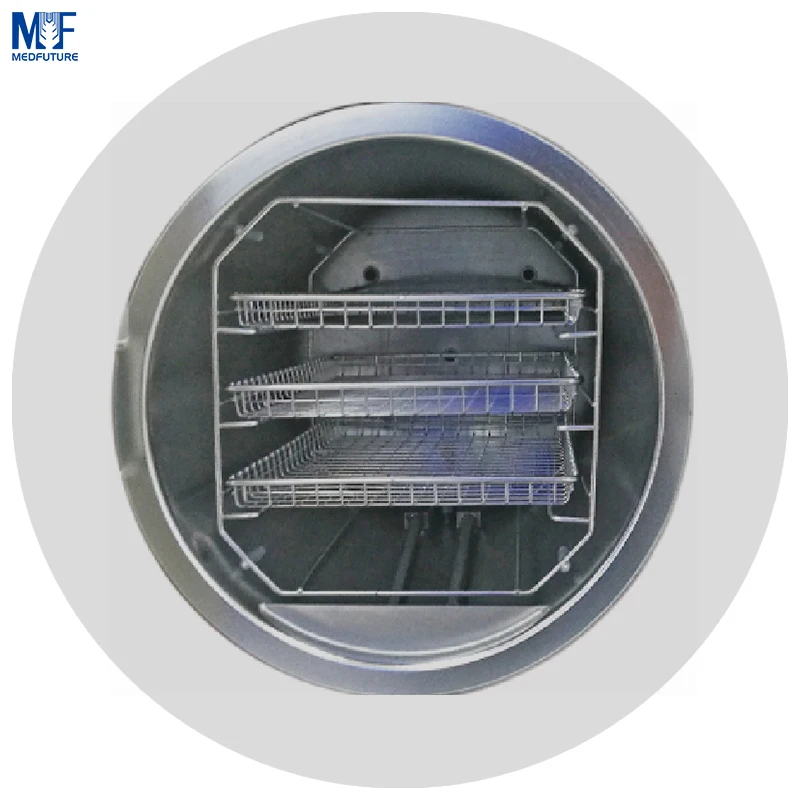

| Tray Holder | 3 pcs SS trays on SS shelf | ||||
| Chamber | SUS304 | ||||
| Max working pressure:2.3bar | |||||
| Min working pressure: 1.1bar | |||||
| Max temperature: 145℃ | |||||
| Ambient Temp. | 5~40℃ | ||||
| Noise | <50dB | ||||
| Consumption | 1400W | 1500W | 1700W | ||
| Power Supply | 110/220V±10%, 60/50Hz | ||||
| External Size(W*D*H)mm | 560*450*400 | 560*450*400 | 670*450*400 | ||
| Packing Size(W*D*H)mm | 660*525*495 | 660*525*495 | 770*525*495 | ||
| Gross Weight(kg) | 50 | 53 | 60 | ||
