BKM-Z16B
BIOBASE

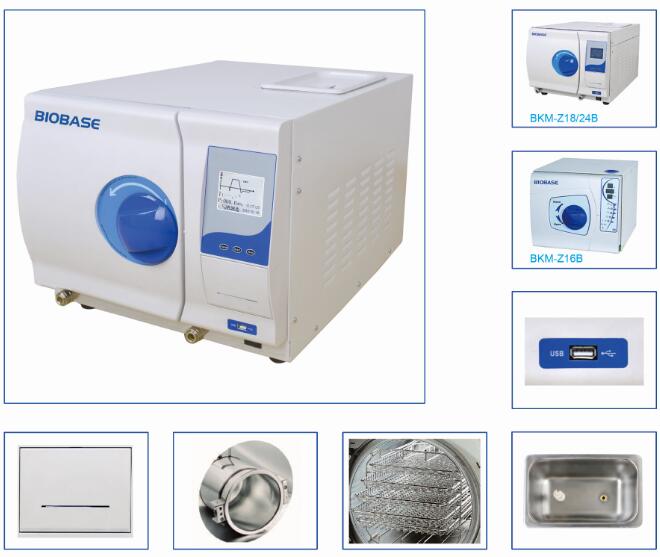

Product Description
Features:
1. Build-in open type water tank
The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected
with water.
2. High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.
3. Large LCD display for BKM-Z18/24B
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information.
It is convenient for customers to observe the sterilizer running status.
4. Multiple program types
The system has various programs that include: packed items, unpacked items, custom program,
rapid program, BD testing program, vacuum testing program, preheat program and drying program.
5. Standard USB port for BKM-Z18/24B
Users can store the sterilization data with USB disk.
6. Optional mini printer can be attached to record the process of sterilization.
Safety Device
1.Fuse
protect the entire device to prevent overload
Action:Cut off current
2. Thermal Fuse
Prevent short circuit and transformer overheating
Action: Cut off current of the transformer.
3.Safety Valve
Prevent overpressure
Action: Release pressure, when there is overpressure
4. Jiggle Switch
Ensure the door closed completely, avoiding safety risk.
5.Temperature Protector(Exterior)
Prevent overheating of Exterior heater
Action:Cut off current when the temperature is too high.
6. Temperature Protector(Steam Generator)
Cut off current when the steam generator temperature is too high.
7. Pressure balance system
The system will automatically balance pressure differential of inner and outer.
Technical Parameters
Model | BKM-Z16B |
Capacity | 16L |
Chamber Size(mm) | φ230*360 |
Sterilization Class | Class B (according toGB0646) |
Sterilization Temp. | 121℃,134℃ |
Special Program | HIV, HBV long-sterilization program |
Drying System | Vacuum drying system |
Display | LED display |
Testing System
| B&D Test |
Vacuum Test | |
Helix Test | |
Control Precision
| Temperature: 1℃ |
Pressure: 0.1bar | |
Sterilization Data
| BKM-Z16B:Printer(optional) |
BKM-Z18B/BKM-Z24B:USB(standard) and printer(optional) | |
Safety System
| Hand lock door |
Pressure lock system | |
Relief valve in case of over pressure | |
Pressure or temperature over load protection | |
Alarm for system failure, finish reminding, water level warning | |
Water Supply System | Build-in water tank easy to clean |
WaterTankCapacity | 2L |
Water Consumption | 0.4L in one cycle |
Tray Holder | 3 pcs SS trays on SS shelf |
Chamber
| SUS304 |
Max working pressure:2.3bar | |
Min working pressure: -0.9bar | |
Designtemperature: 140℃ | |
Ambient Temp. | 5~40℃ |
Noise | <50dB |
Consumption | 1800W |
Power Supply | 110/220V±10%,50/60Hz |
External Size(W*D*H)mm | 445*550*395 |
Packing Size(W*D*H)mm | 550*670*500 |
Gross Weight(kg) | 47 |
Warranty | 3 Years |
Lead Time | Lead time is about 3 to 5 working days from the date of receiving payment. Please allow an extension of lead time when sales hot season. |
