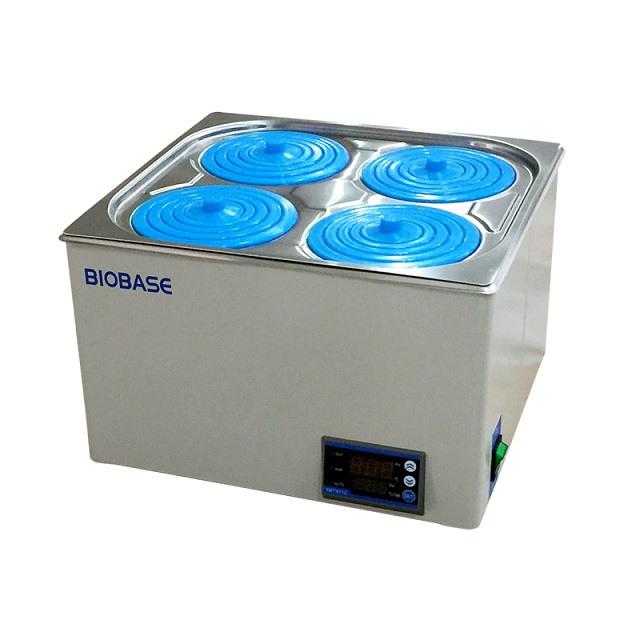

SY-2L4H
BIOBASE
Product Description
Features:
* Stainless steel inner chamber and upper cover.
* Adopt new design structure, which could avoid the leakage of steam.
* PID Mircoprocessor controller, LED display.
* With universal fixture for SY-1L4H and SY-1L6H
Product Structure:
It is made of imported stainless steel with machining technics of exact mechanism. It can be resistant of high temperature and corrosion. The equipment of controlling temperature is designed with operation amplifier of high stability, A/D conversion of double integral and high precision, and infrared heating technics. The time of heating balance is short and the uniformity of temperature is good. LED display the measured value, not only intuitionistic, but also accurate.
Operation Guide:
The power supply must use electrical line of 220V 50HZ 10A and have earthing equipment.
*Affuse the water and then electrify before using, the water line in the pot can be under the heating tube.
*Turn off the power supply if not use for long time.
Technical Parameters
Model | SY-2L4H | ||||||
Capacity | 15L | ||||||
Temp. Range | RT.-100℃ | ||||||
Temp. Fluctuation | ±0.5℃ | ||||||
Temp. Accuracy | ≤±1℃ | ||||||
Time Range | 0~999min | ||||||
Power | 1000W | ||||||
Voltage | AC110/220VV±10%, 50/60Hz | ||||||
Internal Size(mm) | 320*300*150 | ||||||
External Size(mm) | 340*320*210 | ||||||
Packing Size(mm) | 410*390*310 | ||||||
Net Weight(kg) | 6.5 | ||||||
Gross Weight(kg) | 7.5 | ||||||
Lead Time | Lead time is about 3 to 5 working days from the date of receiving payment. Please allow an extension of lead time when sales hot season. | ||||||
Warranty | 1 year |
Service
Pre-sales service:
♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.
After-sales service:
♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.
♥12-month warranty for most of products.
♥Your technicians can be trained by our company.
Packing List
Part Description | Quantity | |
Main Machine | 1 | |
Power Line | 1 | |
Accessory Bag(Manual, fuse) | 1 |
