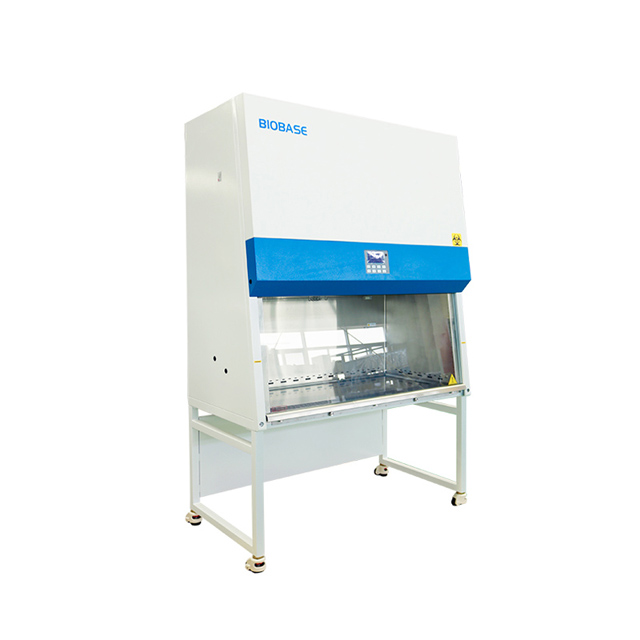

3ft. width 8'' opening EN Certified Class II A2 Biosafety Cabinet

5 0 Reviews
Price: $ 3840 / unit
Model:
Availability:
Quantity:
  • BSC-3F42(3')
  • BIOBASE
  • BSC-3F42(3')

Product Description

A biosafety cabinet, also called a biological safety cabinet or microbiological safety cabinet—is an enclosed, ventilated laboratory workspace for safely working with materials contaminated with (or potentially contaminated with) pathogens requiring a defined biosafety level.

Class II Type A2 biosafety cabinet features

·         EN certified

·         Great for COVID-19 specimen handling

·         Motroized front glass viewing window

·         Dual HEPA filters

·         Large LCD display

·         Filter life indicator

·         Easy-to-clean stainless steel chamber

·         Auto start and stop function (eg. UV lights)

·         Automatic flow speed adjustment



Caution! Installation requires a forklift or a crane.

Attention! Steps before and after using the unit.

·         Step 1: Fully close the front glass panel, turn on UV light for 30 mins (you can use the timer setting). Users should leave the room during this disinfection period.

·         Step 2. Raise the glass panel to recommended opening height, turn on air circulation for 10 minutes.

·         After operation is done, fully close the glass panel, turn on UV light for another 30 minutes, then turn off the unit.


Important Guidelines using a biosafety cabinet

·         No flammable and explosive substances (Building up of flammable material may cause an internal fire or explosion)

·         No volatile chemicals (May cause damage to HEPA filters to the point where it allows particles to leak through)

·         No toxic chemicals or materials (May reach room occupants)

·         No open flame (Will disrupts air flow patterns)

·         Minimal use (10mL or less) of decontaminant, such as 70% isopropyl or ethyl alcohol is allowed.

·         We recommend using the following for disinfecting the surfaces of a BSC, depending on the agent to be controlled: Sodium hypochlorite (bleach), Ilodophors (Wescodyne), Phenolics (Hilphene, Vespene) and Quaternary ammonium compounds (Conflikt, EndbacII)

If gaseous, vaporized or aerosolized chemicals must be generated in a BSC, you should assure yourself that the quantity being generated will NOT cause a flammable or toxic risk


Control screen

BC4-ControllerScreen


Remote control

BSC4FA2-RemoteControl


Airflow pattern

BSC4FA2-Areas

Technical parameters

 Model

BSC-3FA2(3’)

 Electrical requirements

110V 60Hz 1-Phase 400 watts

 Chamber





Dimensions: 35.8 x 23.6 x 26"   (WxDxH)
Material: 304 stainless steel
Power outlet with cover: two, < 500 watts
Water port x 1, stainless steel
Gas port x 1, stainless steel
Surface height from ground: 29.5"

 Lights

18W x 2, > 1000 Lux
UV lights: 18W (Germicidal UV lamp, emission 253.7 nanometers)
* UV lights available only when front glass panel is fully closed.
* Recommended replacement interval: 600 hours

 Air flow



Volume
Inflow: 259 CFM (Cubic Feet per Minute)
Downflow: 382 CFM
Exhaust: 259 CFM
Speed
Inflow: 60-70 FPM (Feet per Minute)
Downflow: 100-110 FPM
* Air circulation   available only when front glass panel is open

 HEPA filter

Two, with 99.999% efficiency at 0.3   μm diameter
Filter life indicator on controller

 Front safety panel



Material: tempered safety glass   (thickness > 5mm), dual-layer, laminated, UV blocking
Recommended   opening height: 8"
Maximum opening height: 21"

 Material

Chamber: 304 stainless steel
Main body: powder coated steel

 Controller

LCD screen with soft touch buttons   and remote control

 Noise

< 61 dB(A)

 Casters

Four, with stationable feet

 Unit/shipping dimensions

42.8 x 30.5 x 89.2" / 49 x   42.5 x 72.4" (WxDxH)

 Shipping weight

661 Lbs

 Safety

Abnormal airflow alarm
Filter replacement alarm
Front glass panel unsafe height

 Compliance

EN

 Warranty

Three years

Lead Time

About 10 to 15 working days after receive   payment


Service

Free:

♥Free offer trial video for your sample
♥Free training video with machine



Pre-sales service:

♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.



After-sales service:

♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.

♥12-month warranty for most of products

♥Your technicians can be trained by our company.


Packing List

 Part description

 Quantity

3 Ft Biosafety Cabinet with base stand

1 pc

Remote

1 pc

Bottom drain port assembly

1 set

Backup UV light tube

1 pc

Hex wrench

1 pc

Front glass panel motor adjusting   tool, plastic

1 pc

Fuse (for glass panel control board)

5 pcs

Hex bolt

 5 pcs

Big, small washer and lock washer

4 sets

User's manual and Test report

1 set
