BSC-1300IIB2-X
BIOBASE
Product Description
4.3ft. Width 17'' Opening Class II B2 Biological Safety Cabinet
Three protection:operator, sample and environment.
Airflow system: 0% air recirculation, 100% air exhaust.
A Class Il B2 BSC, also called a total exhaust cabinet, is necessary when significant amounts of radionuclides and volatile chemicals are expected to be used.
Advantage:
1. Time reserve function.
2. Motorized front window.
3. HEPA filter life and UV life indicator.
4. Automatic air speed adjustable with filter block.
5. With memory function in case of power-failure.
6. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
7. Most accessories are standard, which saves your money. There is no need to pay more.
8. Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
9. Remote control. All functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.
11. Foot switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
Accessory
LCD Display
Large digital display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.

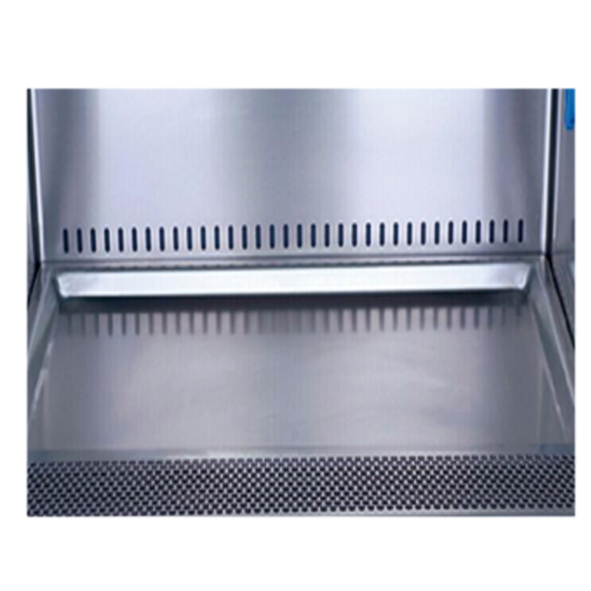

Work Zone
Work zone, made of 304 stainless steel, is surrounded by negative pressure.
Remote Control
All functions can be realized with it, making the operation much easier and more convenient.
UV Lamp
Emission of 253.7 nanometers for most efficient decontamination.
Front Window
Two-layer laminated toughened glass>5mm, anti UV
Footmaster Caster
Universal caster with orake and leveling feet
Foot Switch
Adjust front window height by foot during experiment, to avoid airflow turbulencecaused by arm movement.
Waterproof Socket
2 waterproof sockets are located in the side wall, for optimum convenience of using small devices inside the cabinet.
Technical Parameters
Model | BSC-1300IIB2-X | |
Internal Size(W*D*H) | 1150*600*660 mm | |
External Size(W*D*H) | 1300*750*2250mm | |
Tested Opening | Safety Height 200 mm(8”) | |
Max Opening | 420mm(17”) | |
Inflow Velocity | 0.53±0.025 m/s | |
Down flow Velocity | 0.33±0.025 m/s | |
Pre-Filter | Washable | |
ULPA Filter | Two, 99.9995% efficiency at 0.12 μm,filter life indicator. | |
Front Window | Motorized,two-layer laminated toughened glass ≥ 5mm,anti UV. | |
Noise | NSF49 ≤ 61 dB / EN1246949 ≤ 58 dB | |
UV Lamp | 30W*1 | |
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. | ||
Illuminating Lamp | LED Lamp | |
14W*2 | ||
Illumination | ≥1000Lux | |
Consumption | 850W | |
Waterproof Sockets | Two, total load of two sockets: 500W | |
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | |
Control System | Microprocessor | |
Airflow System | 0% air recirculation, 100% air exhaust | |
Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | |
Exhaust Duct | 4 meters PVC duct, Diameter:300mm | |
Material | Work Zone: 304 stainless steel | |
Main Body: Cold-rolled steel with anti-bacteria powder coating. | ||
Work Surface Height | 750mm | |
Caster | Foot master caster | |
Power Supply | AC 220V±10%, 50/60Hz; 110V±10%, 60Hz (110V/60Hz is not applicable to BSC-1800IIB2-X) | |
Standard Accessory | Illuminating lamp, UV lamp*2,base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof sockets*2, pipe strap*2 | |
Optional Accessory | Water and gas tap, Electric height adjustable base stand | |
Gross Weight | 276kg | |
Package | Main Body | 1460*1050*1800 mm |
Exhaust Blower(W*D*H) | 970* 810* 630 mm |
Services
Free:
♥Free offer trial video for your sample
♥Free training video with machine
Pre-sales service:
♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.
After-sales service:
♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.
♥12-month warranty for most of products
♥Your technicians can be trained by our company.
Packing List
Packing list
Items | Model | Position | Quantity |
Main Body | Wooden box | 1unit | |
Base Stand | Placed in two carton box | 1set | |
Exhaust blower | Placed in exhaust Wooden box | 1unit | |
Exhaust blower bracket | 1set | ||
Exhaust duct | 1pc | ||
Exhaust duct clip | 2pcs | ||
UV Lamp (T6 30W) | BSC-1100IIB2-X | Top or back of main body
| 1pc |
BSC-1300IIB2-X | 1pc | ||
UV Lamp (T6 40W) | BSC-1500IIB2-X
| 1pc | |
Base Stand | Placed in two carton boxe | 1set | |
Fuse (10A) | BSC-1100IIB2-X | Placed in a transparent plastic bag | 1pc |
BSC-1300IIB2-X | 1pc | ||
BSC-1500IIB2-X | 2pcs | ||
Fuse (5A) | 1pc | ||
Remote control (including battery) | 1pc | ||
Keys | 2pc | ||
User manual | 1pc | ||
Test report | 1pc | ||
Quality certification card | 1pc | ||
Foot switch | Placed in the carton accessory box | 1pc | |
Power cord | 1pc | ||
Drain Valve | 1set | ||
Stainless steel hex cylinder head bolt M10×55 | 3pcs | ||
Stainless steel flat washer10 | 3pcs | ||
Stainless steel spring washer 10 | 3pcs | ||
Hexagon head bolt M8×25 + Flat washer 8 + Spring washer 8 + M8 Screw nut | 4sets | ||
M8*100 Expansion bolt | 6pcs | ||
Transparent glass glue (with rubber mouth) | 1pc | ||
Inner hexagon wrench | 1pc | ||
Big rubber gasket | 1pc | ||
Small rubber gasket | 1pc | ||
Front window tubular motor control rod | 1pc | ||
Buckle stopper (white) | 7pcs |
