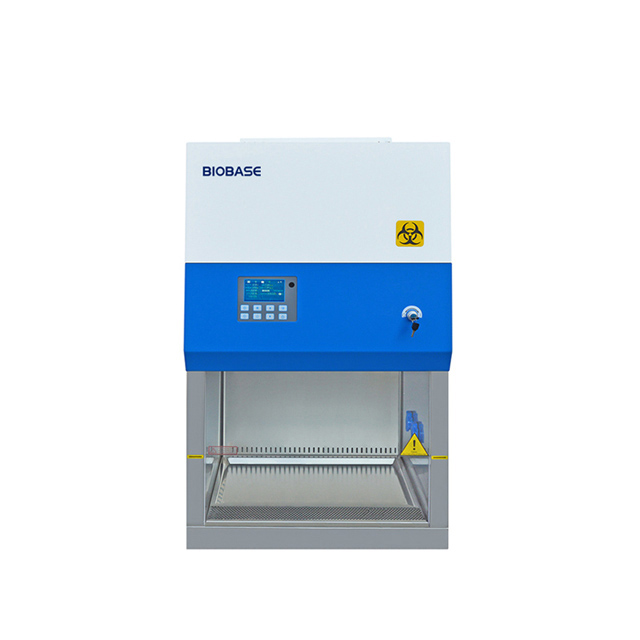

Basic Series Class II A2 Biosafety Cabinet

5 0 Reviews
Price: $ 1872 / unit
Availability:
Quantity:
  • 11231BBC86

  • BIOBASE

Product Description

Biosafety cabinet, also called a biological safety cabinet or microbiological safety cabinet—is an enclosed, ventilated laboratory workspace for safely working with materials contaminated with (or potentially contaminated with) pathogens requiring a defined biosafety level.


Class II Type A2 biosafety cabinet features

·         Great for COVID-19 specimen handling

·         Motroized front glass viewing window

·         Dual HEPA filters

·         Large LCD display

·         Filter life indicator

·         Easy-to-clean stainless steel chamber

·         Auto start and stop function (eg. UV lights)

·         Automatic flow speed adjustment



Attention! Steps before and after using the unit.

·         Step 1: Fully close the front glass panel, turn on UV light for 30 minutes (you can use the timer setting). Users should leave the room during this disinfection period.

·         Step 2: Raise the glass panel to recommended opening height, turn on air circulation for 10 minutes.

·         After operation is done, fully close the glass panel, turn on UV light for another 30 minutes, then turn off the unit.

01_11231bbc86_main

Control Screen

07_bsc_1100Ⅱa2_X_ld

11231 details


Remote Control

11231 remote control


Technical parameters

Model

11231 BBC 86

External Size(W*D*H)

700*650*1230mm(without base stand)

Internal Size(W*D*H)

600*500*540mm

Tested Opening

Safety height 200mm(8")

Max Opening

370mm(15")

Inflow Velocity

0.53±0.025m/s

Down Flow Velocity

0.33±0.025m/s

HEPA Filter

Two, 99.995% efficiency at 0.3μm. Filter life indicator

Front Window

Motorized. Single Layer toughened glass 5mm. Anti UV.

Noise

≤67dB

UV Lamp

15W*2

UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination

LED Lamp

8W*2

Illumination

≥1000Lux

Consumption

700W

Socket

Two, total load of two sockets: 500W

Display

LCD display

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Visual and Audio Alarm

Filter replacement, window over height, abnormal air flow velocity;High filter pressure alarm.

Material

Work Zone: 304 stainless steel.

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Surface Height

750mm with optional base stand

Power Supply

AC220V±10%, 50/60HZ;110V±10%, 60Hz

Standard Accessory

LED lamp*2, UV lamp*2, Remote control, Waterproof sockets*2

Optional Accessory

SS Water tap*1, SS Gas tap*1,Base stand

Packing Size (without base stand)

Carton: 730*787*1450mm

Wood: 860*780*1420mm

Gross Weight (without base stand)

Carton: 120kg

Wood: 140kg

Package Size(with base stand)

Carton: 850*787*1450mm

Wood: 860*970*1420mm

Gross Weight (with base stand)

Carton: 140kg

Wood: 160kg


Service

Free:

♥Free offer trial video for your sample
♥Free training video with machine



Pre-sales service:

♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.



After-sales service:

♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.

♥12-month warranty for most of products

♥Your technicians can be trained by our company.


Packing List

 Part description

 Quantity

2 Ft Biosafety Cabinet

1 pc

 Remote control

1 pc

 Bottom drain port assembly

5 pcs

 Backup UV light tube

1 pc

 Front glass panel motor adjusting tool, plastic

1 pc

 Fuse (for glass panel control board)

1 pc
