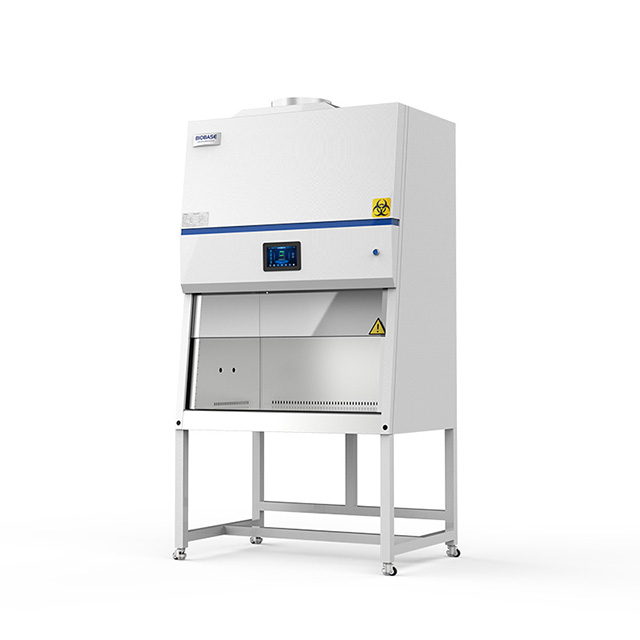

Biosafety Cabinet Class II Type A2 BSC-1100IIA2-Pro

5 0 Reviews
Price: $ 3180
Availability:
Quantity:
  • BSC-1100IIA2-Pro

Product Description

Product origin: CHINA

Delivery time: Available on stock

Supply capacity: Factory Direct Supply


ADVANTAGE:

1. The operation perspective is wide and more humanized.

2. Time reserve function.

3. ULPA filter life and UV life indicator.

4. Motorized front window.

5. With memory function in case of power-failure.

6. Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height; High filter pressure alarm ).

7. Self-locking button switch to solve the trouble of losing the key.

8. 7 inch Large touch screen with Intelligent control system: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

9. Remote control: all functions can be realized with it, making the operation much easier and more convenient.

10. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.

11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.


Models:

Model

BSC-1100IIA2-Pro

BSC-1300IIA2-Pro

BSC-1800IIA2-Pro

External Size(W*D*H)

1100*750*2210mm

1383*750*2295mm

1873*780*2310mm

Internal Size(W*D*H)

940*600*660mm

1210*600*660mm

1700*600*660mm

Tested Opening

Safety Height 200mm(8″)

Max Opening

420mm(17″)

500mm (20″)

520mm(21″)

Inflow Velocity

0.53±0.025 m/s

Downflow Velocity

0.33±0.025 m/s

ULPA Filter

Two, 99.9995% efficiency at 0.12μm. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass ≥ 6mm. Anti UV.

Noise

≤ 67dB

UV Lamp

30W*2

30W*2

40W*2

UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.

Illuminating Lamp

LED lamp

12W*2

12W*2

16W*2

Illumination

≥1000Lux

Consumption

600W

1300W

1300W

Waterproof Sockets

Two, total load of two sockets: 500W

Display

7 inch touch scren display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow

and downflow velocity, filter life, humidity and temperature, system working time etc.

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Visual and audio alarm

Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm.

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm(Size can be customized according to requirements)

Caster

Footmaster caster

Power Supply

AC220V±10%,50/6OHz;110V±10%,60Hz

Standard Accessory

Optional Accessory

LED lamp*2, UV lamp*2,Base stand,Remote control, Foot switch, Drain valve,Waterproof sockets*2 Water and gas tap,Electric height adjustable base stand,Armrest,chair

Gross Weight

265kg

340kg

430kg

Package Size(W*D*H)

1250*990*1770mm

1540*1080*1910mm

2000*1075*1910mm
