4.92 ft Pathology Workstation

5 0 Reviews

Pathological sampling bench is widely used in hospital pathology department, pathology laboratory, etc. Reasonable ventilation system protects operator away from the harmful gas produced by the formalin during sampling. The hot & cold water system ensures it can adapt work in different climates.

Price: $ 0 / unit
Discount Price: $ 3660 / unit
External Size (W*D*H):
Working Area Size (W*D*H):
Work Surface Height:
Consumption:
Optional water heater:
Quantity:
  • QCT-1500
  • BIOBASE

20160702133703_2306                                             20160702133709_4209

Configuration                                                                      Suction Inlet

UV Light;                                                                              Suction inlet adopts louver-type. The upper

Fluorescent Light;                                                                mouthing structure ensures above blower

Adjustable Spotlight;                                                           suction, avoiding air back-streaming.

Stainless Steel Hanger;

“UV, FAN, LIGHT, PULVERIZER” Control.

20160702133718_2904                                             20160702133726_9839

Water Tap & Sink                                                               Auto Flushing Design

Stainless steel;                                                                    Automatic flushing device, slightly right-side

Whole-structure.                                                                 slope worktable, easy to waste discharge and cleaning.


20160702133733_9463                                             20180129145529_5923

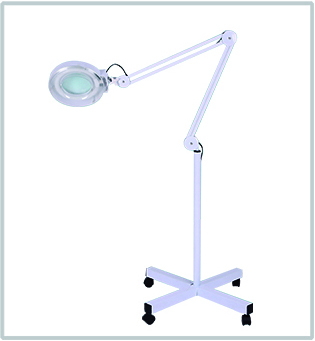

Pulverizer (Optional)                                                          Flex Magnifier Light(Optional)

Completely smash the waste during test,

to avoid blocking drainage pipes.


ADVANTAGE

1. Odor-remove function.

2. Single water sink, two-person operations.

3. Exhaust air system: High-power suction device, low noise.

4. Optional water heater is available, realizing hot & cold water adjustment.

5. The base cabinet is inward-concave type, convenient for sitting operation.

6. Optional pulverizer can completely smash the waste during test, to avoid blocking drainage pipes.

7. Automatic flushing device, slightly right-side inclined worktable, easy for waste discharge and cleaning.


Note the following:

* Cannot be used outdoors, must be used in air-conditioned place.

*  Must be placed on flat ground, placed horizontally.

*  Avoid the direct sunlight or nearing a heating place.

*  Avoid the humid place.

*  Avoid installing near the air return or outlet of the air condition.






Model

QCT-1500

External Size (W*D*H)

1500*750*1950mm

Working Area Size (W*D*H)

1395*430*900mm

Work Surface Height

900mm

Consumption

300W

Optional water heater

1500W

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Exhaust Airflow Volume

500-600m3/h

Material

Main Body

304 stainless steel

Work Table

304 stainless steel

Standard Accessories

Spotlight;

UV lamp;

Fluorescent lamp;

Exhaust system;

4m exhaust duct;

Pipe strap;

Auto flushing device;

Stainless steel hanger;

Adjustable hot and cold water tap;

180mm deep stainless steel water sink, funnel with filter.

Active carbon filter

Optional Accessories

Pulverizer, Electrical water heater, Automatic induction hand dryer, Eye washer, Camera.

Flex magnifier light, laptop bracket

Package Size(W*D*H)mm

1660*890*2170

Gross Weight

300kg

Warranty3 Years
Lead TimeLead time is about 3 to 5 working days from the date of receiving payment. Please allow an extension of lead time when sales hot season.


Standard AccessoriesQuantity

Spotlight

1pc

UV lamp

1pc

Fluorescent lamp

1pc

Auto flushing device

1pc

Stainless steel hanger

1pc

Adjustable hot and cold water tap

1pc

180mm deep stainless steel water sink, funnel with filter

1pc
Active carbon filter1pc

Optional Accessory


Pulverizer


Electrical water heater


Automatic induction hand dryer


Eye washer


Camera



Pre-sales service:
♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.



After-sales service:
♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.

♥12-month warranty for most of products.

♥Your technicians can be trained by our company.
