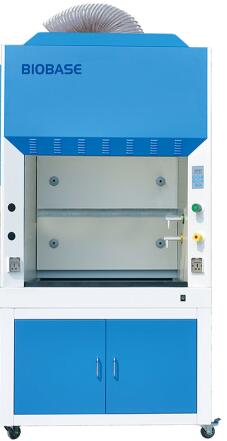

New Laboratory Fume Hood Cupboard For Inspection And Testing Center

External Size (W*D*H)

1040*800*2200mm

Internal Size (W*D*H)

820*670*730mm

Work Surface Height

850mm

Max Opening

520mm

Air Velocity

0.3~0.8m/s

Noise

≤68dB

Exhaust Duct

PVC, Standard length: 4 meters.

Φ300mm

LED Lamp

8W*1

UV Lamp

Emission of 253.7 nanometers for most efficient decontamination

Blower

Built-in centrifugal blower; Speed adjustable.

Front Window

5mm toughened glass; Motorized; Height adjustable.

Power Supply

AC220±10%, 60/50Hz; 110±10%, 60Hz

Consumption

400W

Material

Exterior

Cold-rolled steel with anti-bacteria powder coating.

Interior

High grade melamine board with good acid and alkali resistance function

Work Table

Chemical resistant phenolic resin

Stand Accessory

UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet

Total load of 2 waterproof sockets: 500W

4-meter PVC exhaust duct, pipe strap*2

Optional Accessory

Active carbon filter

Gross Weight

286kg

Package

Main Body

1190*990*1690 mm

Base Cabinet

1190*990*980mm
