6.2ft. Width 20'' Opening Class II B2 Biological Safety Cabinet

Share to:

6.2ft. Width 20'' Opening Class II B2 Biological Safety Cabinet

5 0 Reviews

This products belong to Class II B2 biological safety cabinet which fully meet the requirement of US standard ANSI/NSF49:2002, European standard EN12469:2000, biological safety cabinet is a kind of negative pressure filtration system for protecting operator, the laboratory environment and work materials, the front opening which air flow inward have protection function for operator, the filtered laminar flow generated by vertical HEPA can protect work materials, what’s more, the polluted air flow become pure after processed by HEPA(ULPA) filter. When it’s used in microbiology experiment environment filled with volatile or toxic chemical and radionuclide, suitable exhaust hood in function have to be linked.

Price: $ 4440 / unit

Model:	BSC-1800IIB2-X
Availability:

Quantity:



Buy Now Add to Cart

Model:
BSC-1800IIB2-X
Brand:
BIOBASE

Product Description

6.2ft. Width 20'' Opening Class II B2 Biological Safety Cabinet

Three protection:operator, sample and environment.
Airflow system: 0% air recirculation, 100% air exhaust.
A Class Il B2 BSC, also called a total exhaust cabinet, is necessary when significant amounts of radionuclides and volatile chemicals are expected to be used.

Advantage:

1. Time reserve function.
2. Motorized front window.
3. HEPA filter life and UV life indicator.
4. Automatic air speed adjustable with filter block.
5. With memory function in case of power-failure.
6. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
7. Most accessories are standard, which saves your money. There is no need to pay more.
8. Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
9. Remote control. All functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.

11. Foot switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

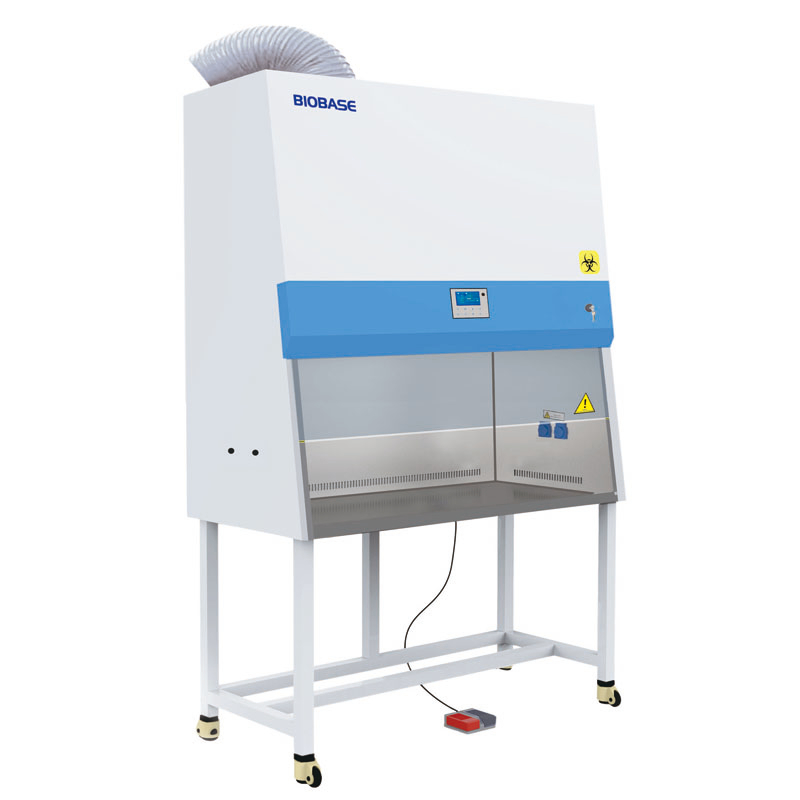

01_bsc_1100IIb2_X_main

Accessory

06_bsc_1100IIb2_X_ld

LCD Display
Large digital display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.

10_bsc_1100IIb2_X_wz

Work Zone
Work zone, made of 304 stainless steel, is surrounded by negative pressure.

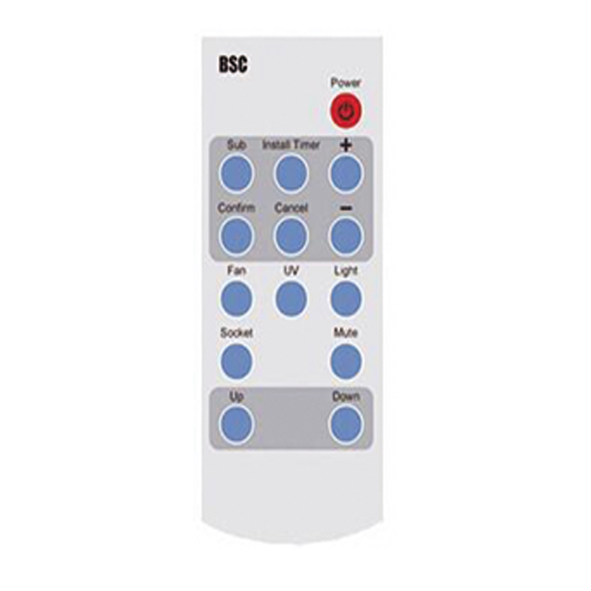

07_bsc_1100IIb2_X_rc

Remote Control
All functions can be realized with it, making the operation much easier and more convenient.

08_bsc_1100IIb2_X_ul

UV Lamp
Emission of 253.7 nanometers for most efficient decontamination.

05_bsc_1100IIb2_X_fw

Front Window
Two-layer laminated toughened glass>5mm, anti UV

04_bsc_1100IIb2_X_fc

Footmaster Caster
Universal caster with orake and leveling feet

03_bsc_1100IIb2_X_fs

Foot Switch
Adjust front window height by foot during experiment, to avoid airflow turbulencecaused by arm movement. 09_bsc_1100IIb2_X_ws

Waterproof Socket
2 waterproof sockets are located in the side wall, for optimum convenience of using small devices inside the cabinet.

Technical Parameters

Model		BSC-1800IIB2-X
Internal Size(WDH)		1700600660 mm
External Size(WDH)		18737752270mm
Tested Opening		Safety Height 200 mm(8”)
Max Opening		480mm(20”)
Inflow Velocity		0.53±0.025 m/s
Down flow Velocity		0.33±0.025 m/s
Pre-Filter		Washable
ULPA Filter		Two, 99.9995% efficiency at 0.12 μm,filter life indicator.
Front Window		Motorized,two-layer laminated toughened glass ≥ 5mm,anti UV.
Noise		NSF49 ≤ 61 dB / EN1246949 ≤ 58 dB
UV Lamp		40W*1
		UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.
Illuminating Lamp		LED Lamp
		16W*2
Illumination		≥1000Lux
Consumption		1200W
Waterproof Sockets		Two, total load of two sockets: 500W
Display		LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System		Microprocessor
Airflow System		0% air recirculation, 100% air exhaust
Alarm		Abnormal airflow velocity; Filter replacement; Front window at unsafe height.
Exhaust Duct		4 meters PVC duct, Diameter:300mm
Material		Work Zone: 304 stainless steel
		Main Body: Cold-rolled steel with anti-bacteria powder coating.
Work Surface Height		750mm
Caster		Foot master caster
Power Supply		AC 220V±10%, 50/60Hz; 110V±10%, 60Hz (110V/60Hz is not applicable to BSC-1800IIB2-X)
Standard Accessory		Illuminating lamp, UV lamp2,base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof sockets2, pipe strap*2
Optional Accessory		Water and gas tap, Electric height adjustable base stand
Gross Weight		408kg
Package	Main Body	20009501820 mm
	Exhaust Blower(WDH)	970* 810* 680 mm

Services

Free:

♥Free offer trial video for your sample
♥Free training video with machine

Pre-sales service:

♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.

After-sales service:

♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.

♥12-month warranty for most of products

♥Your technicians can be trained by our company.

Packing List

Packing list

Items	Quantity
Main Body	1unit
Base Stand	1 set
External exhaust blower	1set
External exhaust blower holder	1set
Exhaust duct	1pc
Exhaust duct clip	2pc
Power cord	1pc
Fuse（15A）	2pcs
Fuse（5A）	1pc
UV Lamp (T6 40W)	1pc
Remote control (including battery)	1pc
Keys	2pc
Foot switch	1pc
User manual	1pc
Test report	1pc
Quality certification card	1pc
Drain Valve	1set
Inner hex cylinder head bolt M10×55	1pc
Inner hex cylinder head bolt M10×80+flat washer 10+spring washer10+M10 nut	4sets
Inner hex cylinder head bolt M10×25+flat washer 10+spring washer 10	4sets
Inner hex cylinder head bolt M8×25+flat washer 8+spring washer 8+ M8 nut	4sets
Inner hexagon wrench	1pc
Big rubber gasket	1pc
Small rubber gasket	1pc
Front window tubular motor control rod	1pc
M8*100 Expansion bolt	6pcs
Transparent glass glue (with rubber mouth)	1pc
Buckle stopper (white)	7pcs
Connecting fittings	4pcs
