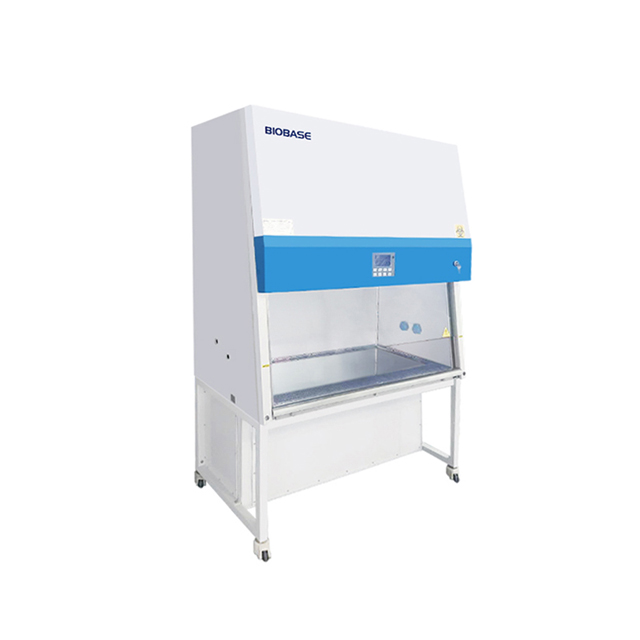

LCD Display Cytotoxic Safety Cabinet 11234BBC86

5 0 Reviews
Price: $ 4440 / unit
Inflow Velocity:
Down Flow Velocity:
Water &Gas Tap:
Availability:
Quantity:
  • 11234BBC86

  • BIOBASE

Product Description

Cytotoxic Safety Cabinet belong to Class II A2 biological safety cabinet which fully meet the requirement of Pharmaceutical industry standard of the People's Republic of US standard ANSI/NSF49:2002, European standard EN12469:2000, biological safety cabinet is a kind of negative pressure filtration system for protecting operator, the laboratory environment and work materials, the front opening which air flow inward have protection function for operator, the filtered laminar flow generated by vertical HEPA can protect work materials, what’s more, the polluted air flow become pure after processed by HEPA(ULPA) filter. As it has bag in and bag out filter, exhausted air will be much safe after twice processed so that protect environment. Operating air come back to operating area after twice processed, air purification effect is stronger and ensures the accuracy of experimental results.At the same time, the working life of HEPA filter is longer so that reduces the replacement frequency and cost. When it’s used in microbiology experiment environment filled with volatile or toxic chemical and radionuclide, suitable exhaust hood in function have to be linked.


Technical Parameters:

Model

 11234BBC86

Internal size(W*D*H)

 1220*600*630mm

External size(W*D*H)

 1380*760*2100mm(8”)

Tested Opening

Safety Height 200 mm(8’’)

Working Opening

440mm(17")

Internal Work Area,space

0.73m3

Inflow Velocity

0.53±0.025m/s

Down Flow Velocity

0.33±0.025m/s

Exhaust Volume

465m³/h

Air Supply Filter

ULPA filter,efficiency>99.999% for partical size at 0.12 μm

Exhuast Filter

2pieces HEPA filters, efficiency>99.999% for particle at 0.3 μm.

Fiter life indicator and filter working time indicator

Alarm

Abnormal airflow velocity; Filter replacement; Front window at unsafe height.

Noise

EN12469≤58dB/NSF49≤ 61 dB

Water &Gas Tap

Water Tap*1,Gas tap*1

UV lamp

30 W*1


Emission of 253.7nanometers for most efficient decontamination


UV life indicator

Fluorescent Lamp

16 W*2

Illumination

≥1000 lux

Consumption

900 W

Waterproof Socket

Two ; total load of two sokets :≤500W

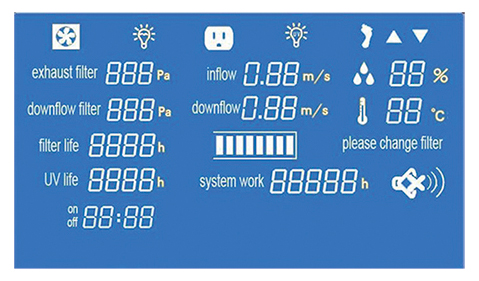

Display

LCD Display

Control Sys tem

Microprocessor

Humidity and Temperature

Humidity and temperature can be displayed on the control panel

Material

Work Area:304 stainless steel;

Main Body :Cold-rolled steel with anti-bacteria powder coating

Front Window

Moterized,two-layer laminated 5mm toughened glass.Anti UV.

Caster

Footmaster Caster

Power Supply

AC220V± 10%,50/60HZ;110V±10%,60HZ

Standard Configuration

Base stand, Drain valve, waterproof sockets*2, Remote control,  UV lamp*2 and Fluorescent Lamp,Water tap ,Gas tap

Optional accessory

Armrest,Formalin fumigation sterilizer,infrared sterilizer, Airflow tester,PVC duct

Gross weight

371kg

Package Size(W*D*H)

1540*910*2280mm


Service

Free:

♥Free offer trial video for your sample
♥Free training video with machine



Pre-sales service:

♥24 hours online to ensure quick response to customers' inquiry or online message.
♥Guide customers to choose the best suitable machine model.
♥Offer detailed specification and competitive prices.
♥Customization available for special specification products.
♥Sample testing support. View our Factory.



After-sales service:

♥Training how to install and use the machine.
♥ available to service machinery overseas.
♥In response to customers technical problems.

♥12-month warranty for most of products

♥Your technicians can be trained by our company.


Packing List

Items

Model

Position

Quantity

Main Body

Wooden box

1unit

UV Lamp (T6 30W)

11234 BBC 86

Top or back of main body

1pc

Fuse (10A)













Placed in a transparent plastic bag

2pcs

Fuse (5A)

1pcs

Remote control (including battery)

1pc

Keys

2pcs

User manual

1pc

Test report

1pc

Quality certification card

1pc

Power cord













Placed in the carton accessory box

1pc

Big rubbegasket

1pc

Small rubber gasket

1pc

Motor control rod

1pc

Stainless steel internal screw valve

1pc

Stainless steeexternal screw tube

2pcs

PTFE tape

1pc
